Black Wire Cloth 10-80mesh With Features of Uniform meshes; Smooth surface

Ask Lasest Price
Brand Name :	Tenglu
Price :	Negotiable
Delivery Time :	According to required quantity.
Payment Terms :	T/T, L/C at sight
Certification :	ISO9001:2015

Add to Cart

Product Details
Company Profile

Black Wire Cloth 10-80mesh With Features of Uniform meshes; Smooth surface

Black iron wire cloth is made in plain steel wire,so it is also called"black wire cloth",which is widely used as filters in rubber industry,plastics industry and grain industry.

Material: Super quality low carbon steel wire.

Patterns: Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.

General sizes: Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.

Commen Specifications(Sheet 1)

Black Wire Cloth
Mesh	Wire Diameter (bwg)	Specification	Weight (kg)
18x18	0.45mm	3'x100'	50.8
20x20	0.35mm	3'x100'	34.1
22x22	0.30mm	3'x100'	27
24x24	0.33mm	3'x100'	36.4
26x26	0.33mm	3'x100'	39.4
28x28	0.30mm	3'x100'	35.1
30x30	0.30mm	3'x100'	37.6
32x32	0.20mm	3'x100'	17.8
34x34	0.22mm	3'x100'	22.9
36x36	0.22mm	3'x100'	24.2
38x38	0.22mm	3'x100'	25.6
40x40	0.20mm	3'x100'	22.3
42x42	0.17mm	3'x100'	16.9
44x44	0.17mm	3'x100'	17.7
46x46	0.17mm	3'x100'	18.5
48x48	0.17mm	3'x100'	19.3
50x50	0.17mm	3'x100'	20.1
56x56	0.17mm	3'x100'	22.5
60x60	0.17mm	3'x100'	24.2
Roll Width: 0.6-1.5meter

Commen Specifications(Sheet 2)

Black Wire Cloth Dutch Weave
Mesh	Wire Diameter (mm)
12X64	0.58/0.64
14X88	0.50/0.33
24X110	0.36/0.25
30X150	0.23/0.18
40X200	0.18/0.13

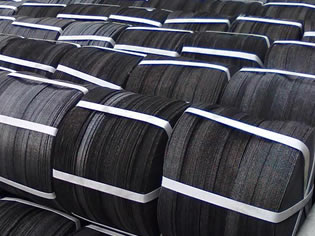

Packing
