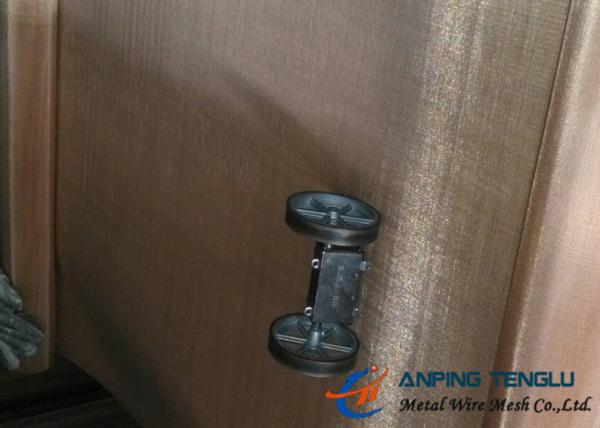

Phosphor Bronze Woven Wire Mesh
Phosphor copper mesh cloth is made of the alloy of phosphor, tin
and copper. The chemical composition of phosphorous bronze wire
mesh differs from bronze wire mesh in that a small amount of
phosphorous is included. Phos bronze, as it is commonly referred to
in the industry, exhibits physical and anti-corrosive properties
slightly superior to copper and brass and has a chemical
composition with 0.03%-0.35% phosphor, 5%-8% tin, the balance is
copper.
Phosphor copper mesh cloth with higher copper content makes it more
corrosion resistance than brass mesh cloth. It is harder and
stronger than copper mesh cloth. Phosphor copper mesh cloth can be
used to sieve and filter granule, powder, porcelain clay and glass,
chinaware printing, grain, filtering liquid and gas. It also can be
the filter in pharmacy, food, industry, chemical industry, paper
making, metallurgy or the screen for window and door.
Weaving Methods: Plain Weave
Features of Phosphor Bronze Wire Mesh(cloth):
1) Corrosion, wear, tear, rust, fatigue, acid and alkali
resistance.
2) Non-magnetic, good ductility, high toughness, high strength.
3) Good electricity and heat conductivity.
4) Phosphor copper wire mesh with higher copper content makes it
more corrosion resistance than brass mesh cloth. It is harder and
stronger than copper mesh cloth.
Application of Phosphor Bronze wire mesh(cloth): filters, air vents, heat pipe wicks, cryogenics heat, decorative
grills, lamps and light shades, fireplace, EMI/RFI shielding mesh,
paper making, strainers, fan guards, etc.
| Phosphor Bronze Woven Wire Mesh |
| Mesh Count | Wire Diameter (mm) | Aperture Size (mm) | Open Area Rate (%) |
| 6 | 0.40 | 3.833 | 81.99 |
| 0.50 | 3.733 | 77.77 |
| 0.60 | 3.633 | 73.66 |
| 0.70 | 3.533 | 69.66 |
| 8 | 0.40 | 2.775 | 76.39 |
| 0.50 | 2.675 | 70.98 |
| 10 | 0.35 | 2.190 | 74.30 |
| 0.40 | 2.140 | 70.98 |
| 0.50 | 2.040 | 64.50 |
| 12 | 0.35 | 1.770 | 69.66 |
| 0.40 | 1.716 | 65.77 |
| 0.50 | 1.616 | 58.33 |
| 14 | 0.30 | 1.514 | 69.66 |
| 0.35 | 1.464 | 65.13 |
| 0.40 | 1.414 | 60.76 |
| 0.50 | 1.314 | 52.47 |
| 16 | 0.25 | 1.337 | 70.98 |
| 0.27 | 1.317 | 68.87 |
| 0.40 | 1.187 | 55.95 |
| 18 | 0.15 | 1.261 | 79.87 |
| 0.17 | 1.241 | 77.35 |
| 0.19 | 1.221 | 74.88 |
| 0.21 | 1.201 | 72.45 |
| 0.25 | 1.161 | 67.7 |
| 0.30 | 1.111 | 62.00 |
| 0.40 | 1.011 | 51.34 |
| 20 | 0.19 | 1.080 | 72.31 |
| 0.21 | 1.060 | 69.66 |
| 0.25 | 1.020 | 64.50 |
| 0.30 | 1.970 | 58.33 |
| 0.40 | 0.870 | 46.92 |
| 22 | 0.25 | 0.904 | 61.38 |
| 24 | 0.15 | 0.908 | 73.66 |
| 0.20 | 0.858 | 65.77 |
| 0.30 | 0.758 | 51.34 |
| 0.35 | 0.708 | 44.79 |
| 30 | 0.12 | 0.726 | 73.66 |
| 0.13 | 0.716 | 71.64 |
| 0.15 | 0.696 | 67.70 |
| 0.17 | 0.676 | 63.87 |
| 0.19 | 0.656 | 60.15 |
| 0.20 | 0.646 | 58.33 |
| 0.27 | 0.576 | 46.39 |
| 40 | 0.12 | 0.515 | 0.020 |
| 0.15 | 0.485 | 0.019 |
| 0.18 | 0.455 | 0.018 |
| 0.20 | 0.435 | 0.017 |
| 50 | 0.12 | 0.388 | 58.33 |
| 0.13 | 0.378 | 55.36 |
| 0.15 | 0.358 | 49.66 |
| 0.20 | 0.308 | 36.75 |
| 60 | 0.10 | 0.323 | 58.30 |
| 0.11 | 0.313 | 54.76 |
| 0.12 | 0.303 | 51.34 |
| 0.15 | 0.273 | 41.68 |
| 0.17 | 0.253 | 35.81 |
| 0.19 | 0.233 | 30.38 |
| 80 | 0.08 | 0.237 | 55.72 |
| 0.09 | 0.227 | 51.34 |
| 0.10 | 0.217 | 46.92 |
| 0.12 | 0.197 | 38.69 |
| 100 | 0.07 | 0.184 | 52.48 |
| 0.08 | 0.174 | 46.92 |
| 0.09 | 0.164 | 41.69 |
| 0.10 | 0.154 | 36.75 |
| 120 | 0.05 | 0.162 | 40.51 |
| 0.06 | 0.152 | 35.65 |
| 0.07 | 0.142 | 31.11 |
| 0.08 | 0.132 | 38.69 |
| 150 | 0.06 | 0.109 | 41.68 |
| 0.07 | 0.099 | 34.41 |
| 180 | 0.05 | 0.091 | 41.68 |
| 0.06 | 0.081 | 33.03 |
| 200 | 0.05 | 0.077 | 36.75 |
| 250 | 0.04 | 0.061 | 36.75 |
| 300 | 0.04 | 0.044 | 27.83 |
| 325 | 0.035 | 0.043 | 30.48 |
| 0.04 | 0.038 | 23.83 |
| 400 | 0.03 | 0.033 | 27.83 |
Other specifications according to your requirements.
Packing: Phosphor Bronze wire mesh is packed in rolls,winding on a paper
tube,wrapped in moisture-proof paper or plastic film, outside
wooden cases or wooden pallet.
