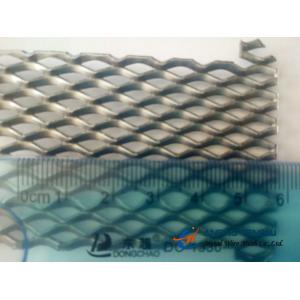

Stainless Steel Expanded Metal Mesh

Expanded metal mesh can be made from a range of materials, such as carbon steel, aluminum metal, stainless steel metal, nickel metal and so on. Expanded metal mesh are widely used as steel reinforcement materials in petroleum, chemical industry and building.

Materials:

Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
Steel: Q195, Q215, Q235
Copper: red copper plate (C10200, C11000), brass plate(CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5)
Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Note: SS304, SS316 is the most common material.

Surface Treatment: hot-dipped, electrol galvanized, pvc-coated.

Expanded Types:

Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.

Flattened Expanded Metal is formed by flattening process based on standard expanded metal. Its strand width and bond are in the same horizontal plane with plate surface. Compared with standard expanded metal,the plate thickness will be thinner and opening will be larger.

Features:

1) Outstanding corrosion resistance

Our expanded metal is ideal for applications involving industrial acids, for the electroplating of baskets and in seawater for fish cages and lobster pots.

When suitably coated, expanded metal mesh, due to the absence of joins and welding seams, offers better performance than woven and welded mesh.

2) Premium reinforcement properties

Expanded metal works as a barrier for the purposes of security and storage.

Our Securilath products impede illegal access through walls and partitions whilst simultaneously strengthening the resilience of the protected area.

3) Anti-skid surface

The knuckles formed by expanding mesh offer secure grip when deployed for steps, ramps and walkways.

We have also developed a range of specific slip-resistant walkway meshes.

Applications:

Racks and trays
Enclosures
Shelving
Drying trays
Grain dryers
Machine guards
Screens and filters
Dipping/degreasing baskets
Grain dryers
Patio furniture
Fan guards
Trailer ramps
Flatbed truck decking
Stair treads
Intake grilles

10mm×6mm Expanded Metal Specifications
