Stainless Steel Woven Mesh for Printing Screen
Printing screen is made of stainless steel wire mesh. Compared with
the polyester, the stainless steel mesh for printing has high
tension, low elongation and excellent corrosion resistance against
the chemicals, so it can use a long time. The weaving method of
printing screen is plain weave, twill weave and dutch weave. Plain
weave printing screen is the most commonly used type.
We use the best raw materials to weave the mesh. The dimensional
stability and durability of stainless steel wire mesh can enhance
the screen printing process. The number of threads per inch will
determine how fine the screen is, and this helps in precise ink
deposit control. The stainless steel printing screen can be
standard stainless steel mesh and ultra thin stainless steel mesh.
Materials: SS304, SS304L, SS316, SS316L.
Weaving Type: Plain weave.
Characteristics:
Uniform wire diameter;
Consistent mesh thickness;
Evenly tension weaves;
High tension;
Super precision, fine wire diameter and even mesh opening ensures
high precision;
High flexibility, the printing mesh will not lose elasticity at
extreme tension;
Low elongation, very small elongation of printing screen at high
tension;
High corrosion resistance, stainless steel printing mesh has better
corrosion resistance than the polyester fiber;
Good heat-melting resistance, stainless steel printing mesh is
suitable for heat-melting ink;
Great solvent resistance, It can prevent various solvents from
corroding printing mesh and ensure the safety of printing screen.
Applications:
We produce wide range of stainless steel wire mesh that is widely
used in printed circuit boards,solar cell, glass bottles, membrane
switch, electro luminescent, thick film technology, key pads,dash
boards, liquid crystal displays etc.
Stainless Steel Printing Screen Specifications:
| Mesh/Inch | Wire Dia.
(μm) | Opening (μm) | Open Area
(%) | Thickness
(μm) | Through Ink
(cm³/m²) | Calender Thickness
(μm) |
| 80 × 80 | 90 | 228 | 52 | 198–207 | 103.0 | 168–170 |
| 80 × 80 | 120 | 198 | 39 | 276–288 | 92.9 | 228–230 |
| 100 × 100 | 100 | 154 | 36.8 | 230–240 | 77.2 | 188–190 |
| 120 × 120 | 80 | 132 | 39 | 184–192 | 65.8 | 148–150 |
| 150 × 150 | 60 | 109 | 41.7 | 138–144 | 50.0 | 138–142 |
| 165 × 165 | 45 | 109 | 50.1 | 95–104 | 45.1 | 78–80 |
| 165 × 165 | 50 | 104 | 45.6 | 110–115 | 45.6 | 88–90 |
| 180 × 180 | 45 | 96 | 46.4 | 99–104 | 41.5 | 78–80 |
| 180 × 180 | 50 | 91 | 42 | 115–120 | 41.7 | 88–90 |
| 200 × 200 | 40 | 87 | 46.9 | 81–82 | 43.0 | 68–70 |
| 200 × 200 | 50 | 77 | 37 | 115–120 | 42.0 | 88–90 |
| 230 × 230 | 35 | 75 | 46.7 | 72–76 | 37.0 | 50–67 |
| 250 × 250 | 30 | 72 | 49.7 | 63–64 | 30.0 | 48–49 |
| 250 × 250 | 35 | 67 | 43 | 76–78 | 32.0 | 59–61 |
| 250 × 250 | 40 | 62 | 49.7 | 82–86 | 34.0 | 50–80 |
| 270 × 270 | 35 | 59 | 39.4 | 76–80 | 30.0 | 58–70 |
| 290 × 290 | 20 | 68 | 41.7 | 43–44 | 18.4 | 29–30 |
| 300 × 300 | 30 | 55 | 38 | 66–68 | 28.0 | 40–59 |
| 325 × 325 | 23 | 55 | 49.8 | 49–53 | 25.4 | 38–39 |
| 325 × 325 | 28 | 50 | 41.2 | 63–64 | 26.4 | 50–51 |
| 325 × 325 | 30 | 48 | 38 | 66–68 | 24.0 | 40–59 |
| 350 × 350 | 25 | 48 | 43 | 52–54 | 18.7 | 41–50 |
| 400 × 400 | 18 | 46 | 51.3 | 36–40 | 20.0 | 28–30 |
| 400 × 400 | 23 | 41 | 40.7 | 50–54 | 19.0 | 35–48 |

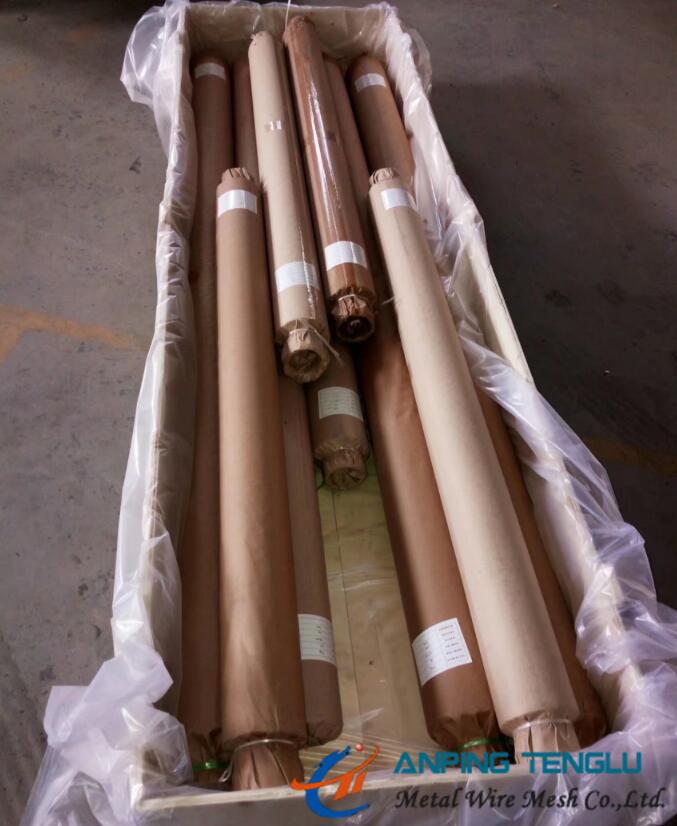

Packing:
