Stainless Steel Rope Mesh(ferrule type)
Stainless steel cable mesh was made from 316 stainless steel
cables, which has X tend mesh when you stretched at a angle.diamond
mesh style

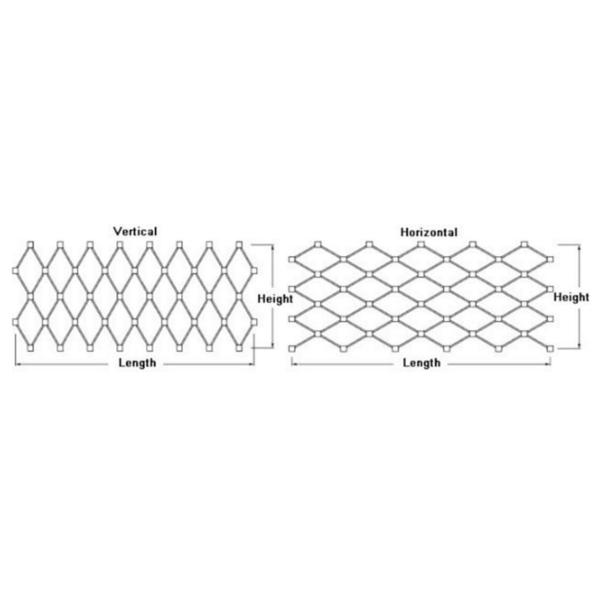

Stainless steel cable mesh-ferruled type, called ferruled
mesh,which assemble by seamless ferrule,improve the mesh netting
strength, X tend mesh rhombus when you stretched at 60°, 50°, 30°
option. Ferrules: tinned copper, nickel-plated copper, stainless
steel, ferruled mesh has highest artistic appreciation and
practicability.
Material: stainless steel 316.
Cable Diameter: 1.0mm to 4.0mm
Opening Size: 20mm to 200mm
Feature:
Unique design idea,X tend mesh style;
Flexible,elegant,discreet,filigreed,multifunctional;
Corrosion resistant,allows strong airflow;
Fully pro-enviroment,recyclable,no toxic and flammable;
Easy installation;
Once steel cable mesh is using,maintenance free,don't ask any
special cleaning or coating;
Long use life, etc.
Applications:
Architectural: stainless steel balustrade, ss railing, division
screen, facade screen, window guard, security infill panels,
decoration, etc.
Fencing: garden fencing, bridege safe net, pedestrian zone,
panorama terraces, observation platform, space guard, rock
protection, etc.
Animal enclosure: zoo mesh, aviary netting, monkey enclosing, etc.
Pet cages: dog cage, cat cage, rabbit cage, etc.
Rope Mesh Data
| Specifications of X-Type Rope Mesh(7×7) |
Cable Diameter (mm) | Opening Size MW×MH (mm) | Transparency (%) | Weight (kg/㎡) | Min. Tensile Strength (KN) |
| 1.0 | 25×43 | 88.4 | 0.91 | 0.63 |
| 1.0 | 30×52 | 90.6 | 0.68 | 0.63 |
| 1.0 | 35×61 | 92.0 | 0.54 | 0.63 |
| 1.0 | 40×69 | 93.3 | 0.44 | 0.63 |
| 1.0 | 50×87 | 94.8 | 0.32 | 0.63 |
| 1.0 | 60×104 | 95.8 | 0.25 | 0.63 |
| 1.0 | 70×121 | 96.4 | 0.20 | 0.63 |
| 1.0 | 80×139 | 96.9 | 0.17 | 0.63 |
| 1.5 | 25×43 | 82.6 | 1.71 | 1.55 |
| 1.5 | 30×52 | 85.9 | 1.31 | 1.55 |
| 1.5 | 40×69 | 89.9 | 0.87 | 1.55 |
| 1.5 | 50×87 | 92.2 | 0.64 | 1.55 |
| 1.5 | 60×104 | 93.7 | 0.50 | 1.55 |
| 1.5 | 70×121 | 94.6 | 0.41 | 1.55 |
| 1.5 | 80×139 | 95.3 | 0.35 | 1.55 |
| 1.5 | 100×173 | 96.3 | 0.27 | 1.55 |
| 1.5 | 120×208 | 97.0 | 0.22 | 1.55 |
| 1.5 | 140×242 | 95.5 | 0.18 | 1.55 |
| 1.5 | 160×277 | 97.8 | 0.15 | 1.55 |
| 1.5 | 180×312 | 98.0 | 0.14 | 1.55 |
| 2.0 | 40×69 | 86.1 | 1.45 | 2.75 |
| 2.0 | 50×87 | 89.3 | 1.07 | 2.75 |
| 2.0 | 60×104 | 91.4 | 0.85 | 2.75 |
| 2.0 | 70×121 | 92.6 | 0.70 | 2.75 |
| 2.0 | 80×139 | 93.6 | 0.60 | 2.75 |
| 2.0 | 100×173 | 95.0 | 0.45 | 2.75 |
| 2.0 | 120×208 | 95.9 | 0.36 | 2.75 |
| 2.0 | 140×242 | 96.6 | 0.30 | 2.75 |
| 2.0 | 160×277 | 97.1 | 0.26 | 2.75 |
| 2.0 | 180×312 | 97.5 | 0.23 | 2.75 |
| 2.0 | 200×346 | 97.8 | 0.20 | 2.75 |
| Specifications of X-Type Rope Mesh(7×19) |
Cable Diameter (mm) | Opening Size MW×MH (mm) | Transparency (%) | Weight (kg/㎡) | Min. Tensile Strength (KN) |
| 3.0 | 50×87 | 85.2 | 2.48 | 5.12 |
| 3.0 | 60×104 | 87.1 | 1.94 | 5.12 |
| 3.0 | 70×121 | 89.0 | 1.59 | 5.12 |
| 3.0 | 80×139 | 90.5 | 1.34 | 5.12 |
| 3.0 | 100×173 | 92.6 | 1.01 | 5.12 |
| 3.0 | 120×208 | 93.9 | 0.81 | 5.12 |
| 3.0 | 140×242 | 94.9 | 0.68 | 5.12 |
| 3.0 | 160×277 | 95.6 | 0.58 | 5.12 |
| 3.0 | 180×312 | 95.9 | 0.51 | 5.12 |
| 3.0 | 200×346 | 96.3 | 0.45 | 5.12 |
| 4.0 | 200×346 | 95.0 | 0.70 | 5.12 |
Specifications according to your requirements.
