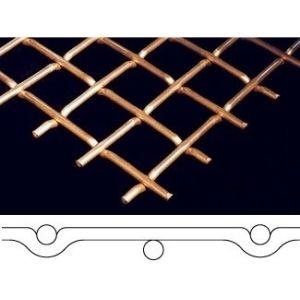

Flat Top Crimped Wire Mesh

Flat top crimped wire mesh is also know as smooth top wire screen. The wire mesh is produced on looms as screen panels, both of the warp wire and weft wire are previously crimped before weaving. The flat top crimped weave is an improved crimp style, its crimps or corrugations is offset to the bottom side of screen, producing a smooth and flat top surface, there is no projections on top to avoid wearing.

Material:

Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel

Features:
Flat surface reduced friction;
Accurate openings increase screening efficiency;
High rigidity and strength;
Strong wear resistance and firm structure.

Usage:
Architectural & decorative industries, for the screen of fence, facade and ceiling;
Agricultural & food industries, for pig raising screens;
Mining & aggregate industries, vibrating machine.

Specifications:
Opening Sizes: from 4mm to 60mm.

Wire Diameters: from 1.6mm to 5.0mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.

Other Specifications according to your requirements.

Packing

Anping Tenglu metal Wire Mesh Co.LTD. is located in Anping County, Hebei Province, the famous Chinese industry base and the township of wire mesh. Its west is Beijing-Guangzhou Railway and Beijing- Shenzhen Expressway, the east is the Beijing-Kowloon Railway and the Beijing-Shanghai Expressway, and the south is Shihuang Expressway. Inside the city, there is a large logistics center of railway and highway, so the transportation is so developed.

We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
