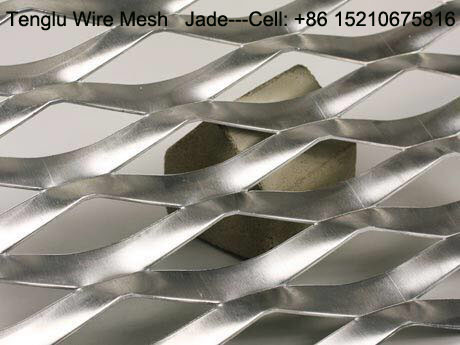

Aluminum expanded metal is made of high quality aluminum sheet/coil after being expanded on the
automatic expanded machines.
It has the features of light weight, shining appearance,
economical, slip-resistance surface, easily to be bent or formed in
any direction.
Features:
1. Economical.
2. Durable.
3. Extremely Versatile.
4. Easy To Install.
5. Low Resistance To Wind Loads.
6. Easily Cut To Fit.
7. Many Material Options.
Miracle to make things good for business to create a good service
to do the right thing. However, it is more important between people
and trusting relationship between the other two, Based on those, we
can trust the people you meet needs in all sincerity that trusts
are stronger and more new business development and it will be
confident.
Expanded metal sheet with a certain sequence of the open hole. Pore
shape and size of the hole, hole spacing (pitch), a wide variety of
applications in use.
Variety: small, medium and heavy expanded metal mesh. Expanded aluminum
mesh, expanded platinum filtration mesh, expanded brass mesh,
expanded copper mesh, expanded stainless steel mesh, expanded
nickel mesh. Opening in the shape of diamond, hexagonal or special
shape.
Use: Used with concrete in buildings and construction, maintenance of
equipments, making of arts and crafts, covering screen for first
class sound case. Also fencing for super highway, studio, highway.
Heavy expanded metal can be used as step mesh of oil tanks, working
platform, corridor and walking road for heavy model equipment,
boiler, petroleum and mine well, automobile vehicles, big ships.
Also serve as reinforcing bar in construction, railway and bridges.
Sizes: Long way of mesh: TB: 12.5-200mm
Short way of mesh: 5-80mm
Thickness: d: 0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from
600-2000mm
| Specification of Expanded Metal Mesh |
| Sheet Thickness | Opening in Width | Opening in Length | Stem | Roll Width | Roll Length | Weight |
| mm | mm | mm | mm | kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
